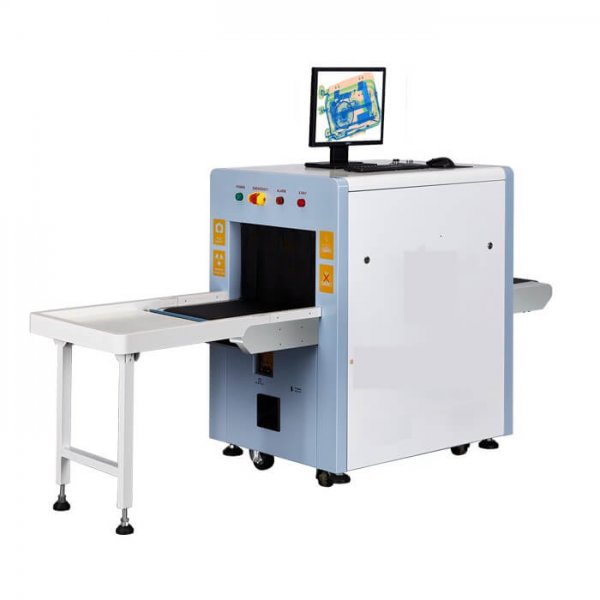

Arsenal 6550 High Performance X Ray Baggage Scanner / Airport X Ray Machine
Tunnel Size: 650 x 500 mm
Conveyor Speed: 0.22 m/s (adjustable)
Load: 200 Kg
Gross Weight: 630 Kg
Power Consumption: 1.0 KW (max)
Noise Level: <55 dB (A)
Penetration: >42 mm steel plate
Tube Current: 0.4-1.2 mA (adjustable)
Ray beam divergence angle: 80 Degrees
X-ray sensor: L-shaped photo diode array detector 12 bit depth
Monitor: High resolution 19 inch LCD Samsung Monitor
Black / White image display: 24-bit true display
Magnifier: Local amplification function
Brightness / Darkness: Increase / decrease image brightness
- Function
- Specifications
- Description
- Additional information
- Reviews (0)
- Original Hamamatsu detectors, image quality, Omron electrical components.Enhance the overall quality
- Global leading parameters: the inspection report issued by the Ministry of Public Security, shows that each parameter is ahead of other products, more details in the inspection report.
- Energy-saving design: The machine can sense objects automatically,if there is luggage on the machine will be operating, if there is no luggage,it'll be quiet. (Optional)
- A key shutdown control: simply rotate the key when clicking shutdown,safe shutdown automaticly ,reduce equipment failure.
- Environmental-friendly Design: lead shade with protective film, prevent lead from hand contact, avoid lead pollution.
- Dynamic screen switching: when it is stationary screen it can be switched and when it is dynamic it also can switch freely.
X-ray Generator
- Generate direct: Upward
- Generate anger: 80 degree
- Anode Voltage: 100~160Kv
- Anode power: 0.4 to 1.2mA
- Cooling / Duty Cycle: Oil Cooling /100%
Image System
- X-ray Sensor: L-Shaped Photodiode Array (multi-energetic) , 12bit Deep
- Monitor: High Resolution Color, LCD Accord, 19 inch
- Image Processing: Edge enhancement, image strengthening, image lightening,, reducing darkening, image returning, image retrieval.
- Image Max Resolution: 1024 * 1280 pixel
- Image Processing: 24bit for processing real time
- Image storage: Storage 60000 pictures in real time
- Zones & Zoom: 1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen continuous observation
- Multi-energetic distinguish objects : organic objects in orange, inorganic objects in blue, mixture in green
- High-energy/low energy : switch from high energy to low energy
- Assist to detect drug and explosive powder
Installation Data
- Operation temperature/Humidity: 0℃-45℃/20%-95%(non-condensing)
- Storage Temperature/Humidity: -20℃-60℃/20%-95%(non-condensing)
- Operation Power: 220VAC(±10%)50±3Hz
- Power Consumption: 1.0 KW (max), 0.7KW(working)
- Noise: <58db
Description
Product features
- Original Hamamatsu detectors, image quality, Omron electrical components.Enhance the overall quality
- Global leading parameters: the inspection report issued by the Ministry of Public Security, shows that each parameter is ahead of other products, more details in the inspection report.
- Energy-saving design: The machine can sense objects automatically,if there is luggage on the machine will be operating, if there is no luggage,it’ll be quiet. (Optional)
- A key shutdown control: simply rotate the key when clicking shutdown,safe shutdown automaticly ,reduce equipment failure.
- Environmental-friendly Design: lead shade with protective film, prevent lead from hand contact, avoid lead pollution.
- Dynamic screen switching: when it is stationary screen it can be switched and when it is dynamic it also can switch freely.
Additional information
| Weight | 23 kg |
|---|---|
| Dimensions | 12 × 24 × 35 in |
| Color | Black, Green, Indigo |
| Size | Large, Medium, Small |
Be the first to review “Arsenal 6550 High Performance X Ray Baggage Scanner / Airport X Ray Machine”
