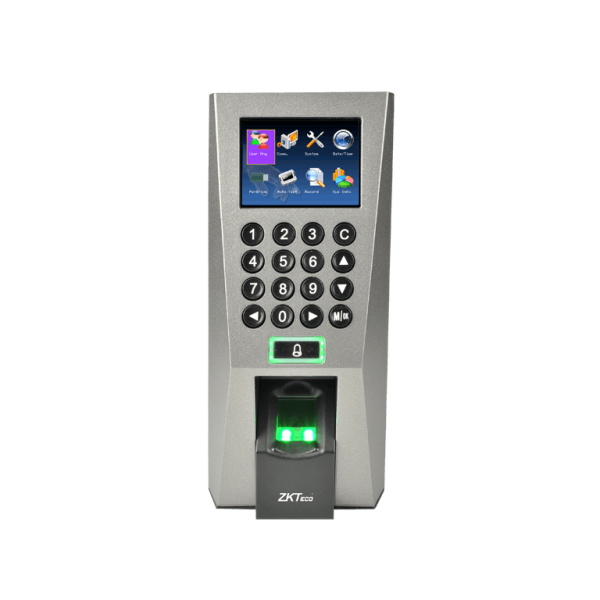

Fingerprint Access Control and Time Attendance Model: F18
- TFT Color Screen
- Audio-visual indication for acceptance and rejection of valid/invalid fingerprints.
- 1.2GHz CPU further speeds up processing time
- Wiegand input & output.
- Network interface by TCP/IP or RS485
- Streamlined and slim design for narrow spaces.
- Anti-passback. Webserver.
- Access control interface for 3rd party electric lock, door sensor, exit button, alarm and doorbell
- supports flexible user privilege setting for multi-level management
- Function
- Specifications
- Description
- Additional information
- Reviews (0)
 |
TFT Color ScreenAudio-visual indication for acceptance and rejection of valid/invalid fingerprints. More simple and convenient operation. |
 |
Slim and Elegant DesignStreamlined and slim design for narrow spaces. |
 |
New PlatformZMM210 hardware with 1.2GHz CPU further speeds up processing time |
 |
Full Access Control FeaturesAnti-passback. Webserver. Access control interface for 3rd party electric lock, door sensor, exit button, alarm and doorbell |
 |
Easy Installation and ConnectivityWiegand input & output. Network interface by TCP/IP or RS485 |
 |
New FirmwareAdopts new firmware which optimizes various functions and supports flexible user privilege setting for multi-level management |
Technical Specifications |
|
|
Fingerprint Capacity |
3000 Templates |
| Card Capacity | 5,000 (Optional) |
|
Transaction Capacity |
30,000 Transactions |
|
Sensor |
ZK Optical Sensor |
|
Algorithm Version |
ZK Finger VX9.0&10.0 |
|
Communication |
RS232/485, TCP/IP, USB-host |
|
Access Control Interface |
3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell |
|
Wiegand Signal |
Input and Output |
|
Display |
TFT LCD Color Screen |
|
Interface Styles |
Common, Matrix and Magic styles |
|
Standard Function |
Webserver, Anti-passback |
|
Optional Function |
ID Card, Mifare Card |
|
Power Supply |
12V DC,3A |
|
Operating Temperature |
0 °C- 45 °C |
|
Operating Humidity |
20%-80% |
|
Dimension(WxDxH) |
80×183×42mm |
Description
F18 is an innovative biometric fingerprint reader for access control application. With high-performance firmware functions and compact design, it has become one of ZKTeco’s most popular devices. It is applied with ZKTeco’s latest firmware with user-friendly UI and flexible user privilege settings for multi-level management. The new hardware platform uses ZMM210 core-board with 1.2Ghz CPU. With optimization of both hardware platform and firmware, the new f18 is able to verify fingerprints with even higher efficiency. The device offers flexibility of both standalone installation and installation with any third-party access control panels which support standard Wiegand signal. TCP/IP and RS485 are also available which enable F18 to be applied in different network.
Additional information
| Weight | 23 kg |
|---|---|
| Dimensions | 12 × 24 × 35 in |
| Color | Black, Green, Indigo |
| Size | Large, Medium, Small |
