TS1000

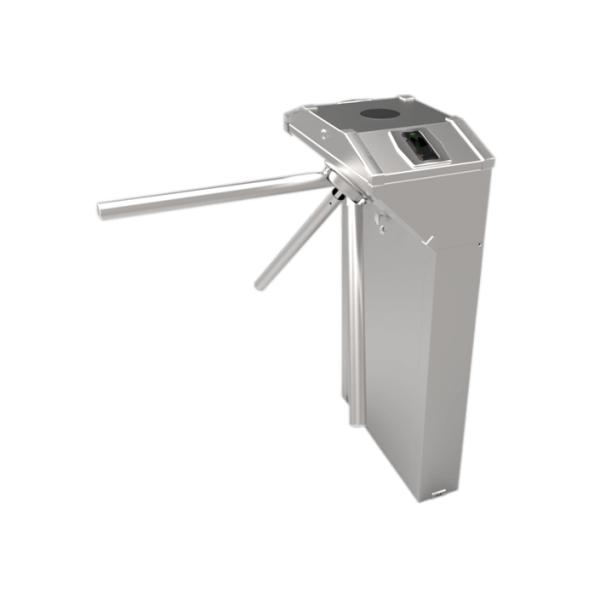

Tripod turnstiles are compact and cost-effective entrance solutions. Designing for smooth and silent operation, reducing power consumption, wear and tear. It is suitable for areas with a high traffic.
The TS1000 series, our stainless steel compact version,offer high operating reliability in a small casework, ideal for sites where space is an issue. By receiving a signal from the access control system, or pushing button, it allows the entry of one person in a time. Entering into different directions are electronically controlled. Default mode is to lock the mechanism until a valid authorization signal is received. IIf you want to set one side free, you can adjust the mechanism. In case of emergency, the horizontal arm will drop to allow free passage.
- Function
- Specifications
- Description
- Additional information
- Reviews (0)
|
Reliability• Alloy steel tripod hub prevents mechanical wear |
  |
Safety and User-Orientated Design• Drop arm designed for emergency purpose |
  |
Easy Integration• Flexible reader installation plate. Customers can easily integrate with third party redaer |
Technical Specifications |
|
|
Power Supply |
AC 220V/110V, 50/60Hz |
|
Operating Temperature |
-28 °C- 60 °C |
|
Operating Humidity |
5%-85% |
|
Working Environment |
Indoor/Outdoor(shelter) |
|
Rated Power |
60W |
|
Flow Rate |
25- 48 passage/minute |
|
Casework Material |
SUS304 |
|
Pictogram Indication |
Yes |
|
Control System |
Input controlled by dry contact |
|
Emergency Button Input |
Yes |
|
Dimension |
52×98×28(CM) + arm length 50CM |
|
Package Dimension |
60×108×38(CM) |
|
Net Weight |
34KG |
|
Gross Weight with Package |
40KG |
|
Optional Function |
Alternative material or shape, third-party access control integration, ticket system integration, passage counter |
Description
Tripod turnstiles are compact and cost-effective entrance solutions. Designing for smooth and silent operation, reducing power consumption, wear and tear. It is suitable for areas with a high traffic.
The TS1000 series, our stainless steel compact version,offer high operating reliability in a small casework, ideal for sites where space is an issue. By receiving a signal from the access control system, or pushing button, it allows the entry of one person in a time. Entering into different directions are electronically controlled. Default mode is to lock the mechanism until a valid authorization signal is received. IIf you want to set one side free, you can adjust the mechanism. In case of emergency, the horizontal arm will drop to allow free passage.
Additional information
| Weight | 23 kg |
|---|---|
| Dimensions | 12 × 24 × 35 in |
| Color | Black, Green, Indigo |
| Size | Large, Medium, Small |
