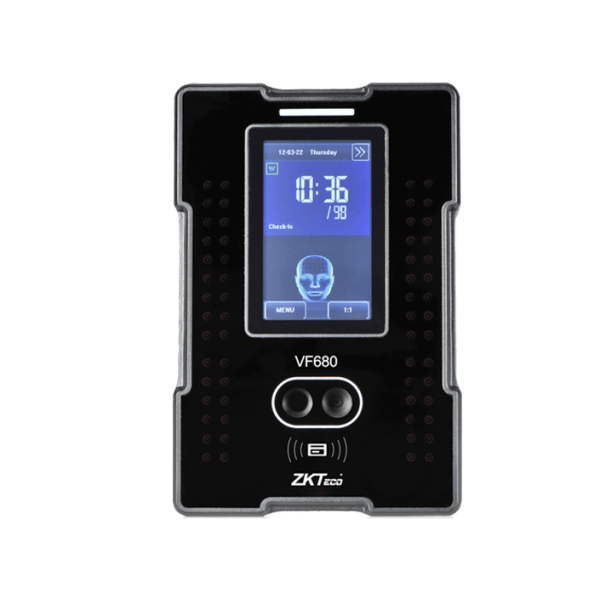

ZKTeco Multi-function Face Identification Terminal Model: VF680
• Elegant ergonomic design; Easy installation.
• Wi-Fi(Optional), TCP/IP, and USB and client communication.
• Professional ZKTeco face identification algorithm.
• 800 face capacity and 10,000 ID Card Capacity.
• Optional Mifare card module.
• Infra-red optical system enables user-identification in a wide range of light environments.
- Function
- Specifications
- Description
- Additional information
- Reviews (0)
• Elegant ergonomic design; Easy installation.
• Wi-Fi(Optional), TCP/IP, and USB and client communication.
• Professional ZKTeco face identification algorithm.
• 800 face capacity and 10,000 ID Card Capacity.
• Optional Mifare card module.
• Infra-red optical system enables user-identification in a wide range of light environments.
Technical Specifications |
|
| Display | 3-inch Touch Screen |
| Face Capacity | 800(Standard)/1200(Optional)(1:N) |
| ID Card Capacity | 10,000 |
| Logs Capacity | 100,000 |
| Communication | TCP/IP, USB (host and client) |
| Standard Functions | ID Card,Automatic Status Switch, Self-Service Query, Work Code, T9 Input, 9 Digit User ID, DST, Scheduled-bell and SMS, 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm |
| Optional Function | Mifare Card, Wi-Fi |
| Power Supply | 12V/1.5A |
| Verification Speed | ≤1 sec |
| Operating Temperature | 0-45 °C |
| Operating Humidity | 20%-80% |
| Dimensions | 104.7 × 160 × 36 mm (L × H × D) |
Description
VF680 is a face identification time & attendance and access control terminal, which can connect with third party electric lock, door sensor, and exit button etc.
With the latest face identification algorithm and streamlined technology, it can hold 800 face templates without dividing into groups.
Communicating via Wi-Fi(optional), TCP/IP, and USB client, it ensures a smooth connection and data transfer. Amazing verification speed and intuitive operation process make it popular. Elaborately designed and finely processed, it matches your slap-up office perfectly.
Additional information
| Weight | 23 kg |
|---|---|
| Dimensions | 12 × 24 × 35 in |
| Color | Black, Green, Indigo |
| Size | Large, Medium, Small |
